Component used:
- Elegoo Uno R3
- IR receiver module
- IR remote
- Female to Male Dupont wires

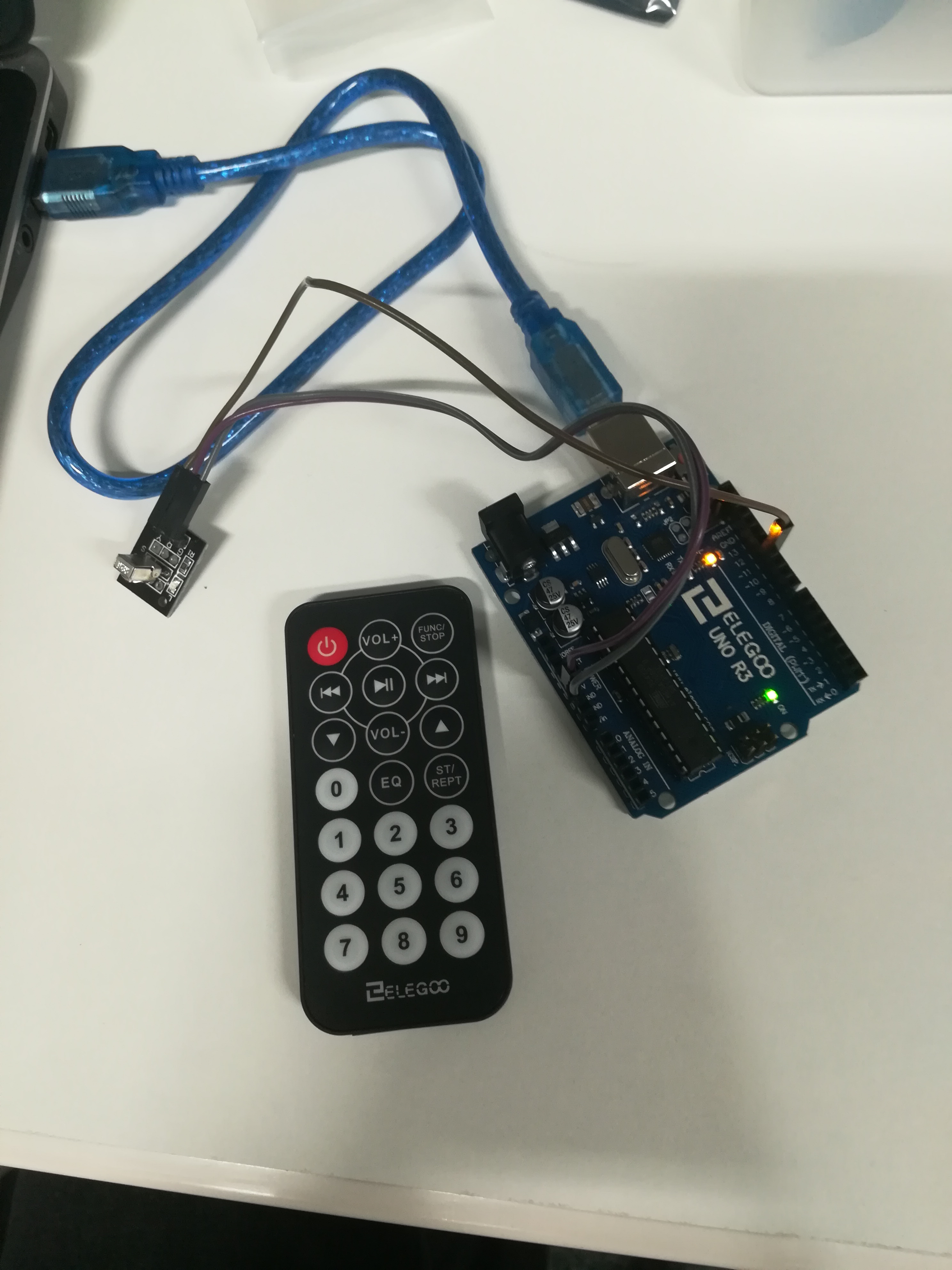

In this experiment we have connected the IR receiver to the UNO. The IR receiver is hardware which sends information from an infrared remote control to another device by receiving and decoding signals.

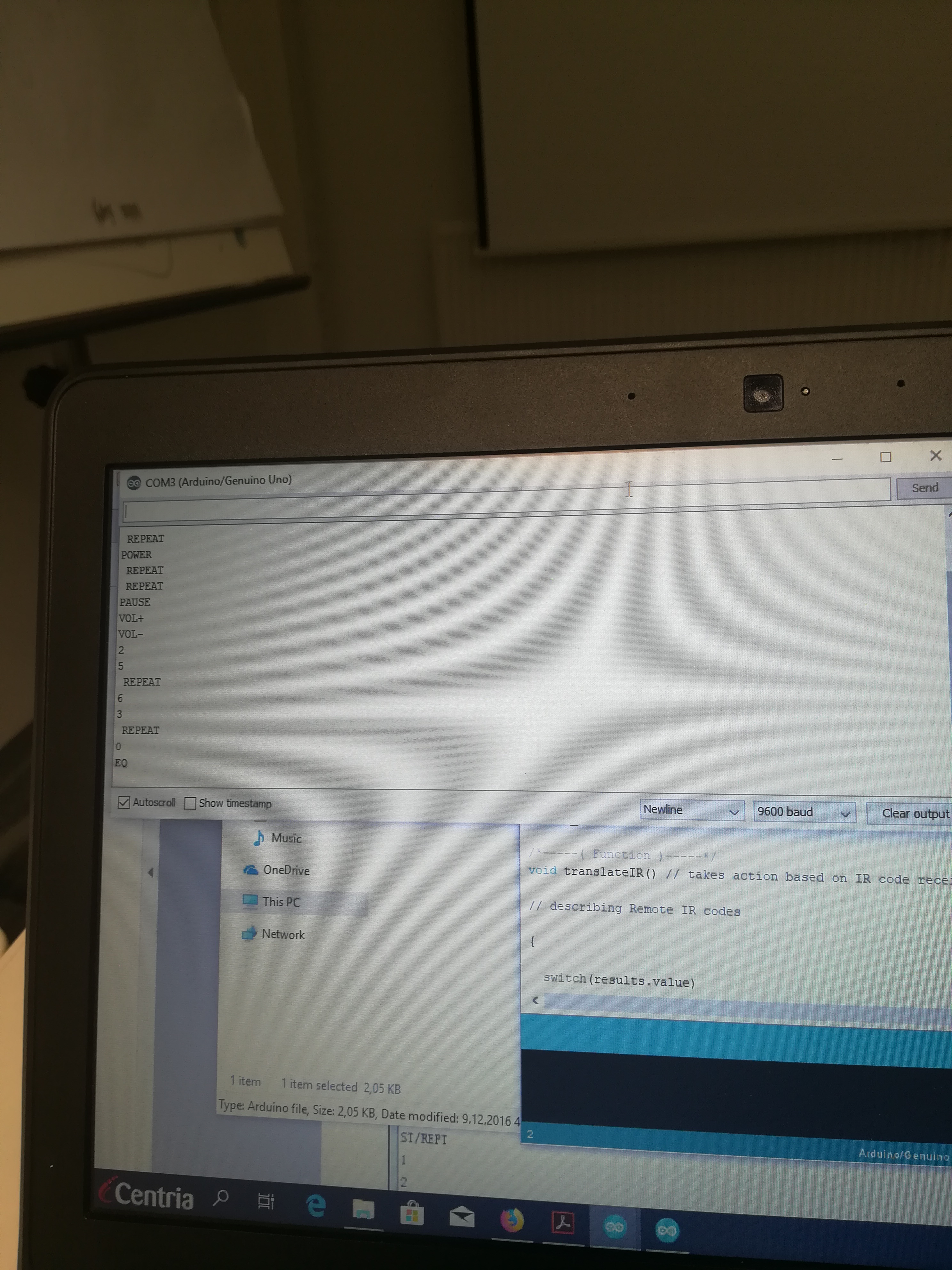

There are three different connection to the IR receiver sensor, Signal, voltage and Ground. below we can see the connection diagram and the coding.
